What is Parallel Inverter? – Circuit, Working, Waveforms & Advantages

In the last article, we have learned about series inverters where commutating components, inductor, and capacitor are connected in series with the load. In this article, let us learn about parallel inverters. In parallel inverters, the commutating components are connected in parallel with the load, and hence the inverter is named Parallel Inverter.

Parallel inverters are well suited for low-frequency applications up to 100kHz. This type of inverter uses load commutation or self-commutation in which a capacitor is connected across the load so that the overall load circuit is underdamped. This inverter produces square wave output voltage from a dc power input. Let us see the circuit diagram, working, and waveforms of a basic parallel inverter.

Circuit Diagram of Parallel Inverter :

The circuit consists of two thyristors (T1 and T2), a center-tapped transformer, a commutating capacitor (C), and an inductor (L). The load is connected to the secondary of the transformer. The dc power input is given between center tap primary and common cathode through thyristors as shown below.

Parallel Inverter

The capacitor appears to be in parallel with the load through the transformer due to which the inductor is connected in series with the dc source. Hence, during the commutation of the thyristor, the instant discharging of the capacitor through the source is prevented.

Working of Parallel Inverter :

The principle of operation of parallel inverter is that the two thyristors are turned ON alternatively at equal time intervals, so that, the two halves of the transformer primary will induces an alternating voltage in the secondary. The circuit operation can be better understood in different modes of operation.

Mode-I :

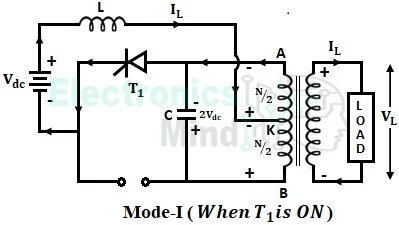

In this mode, thyristor T1 is triggered by giving a gate signal, and the load current starts flowing through inductor L and thyristor T1 as shown below. A voltage equal to 2Vdc appears across the primary winding of the transformer. Due to this, the capacitor also charges to a voltage equal to 2Vdc with polarities as shown above. This mode ends when the thyristor T2 is triggered.

Parallel Inverter

Mode-II :

With the end of mode I, mode-II begins and once the thyristor T2 is triggered, T1 is reversed biased with respect to the voltage across the capacitor C, i.e., a voltage equal to -2Vdc appears across thyristor T1.

Parallel Inverter

So, T1 gets commutated when this reverse voltage is applied for a sufficient time. Now, thyristor T2 alone will be in conduction and the load current flows through inductor L and thyristor T2 as shown above. During this, a voltage equal to 2Vdc appears across the primary of the transformer and across the capacitor with reverse polarities.

Mode-III :

This mode begins when the thyristor T1 is triggered again. Now, due to the conduction of T1, the thyristor T2 is reversed biased with respect to the voltage of the commutating capacitor i.e., a voltage equal to -2Vdc appears across thyristor T2. When this voltage is applied for a sufficient time thyristor T2 gets commutated and the whole process will be repeated.

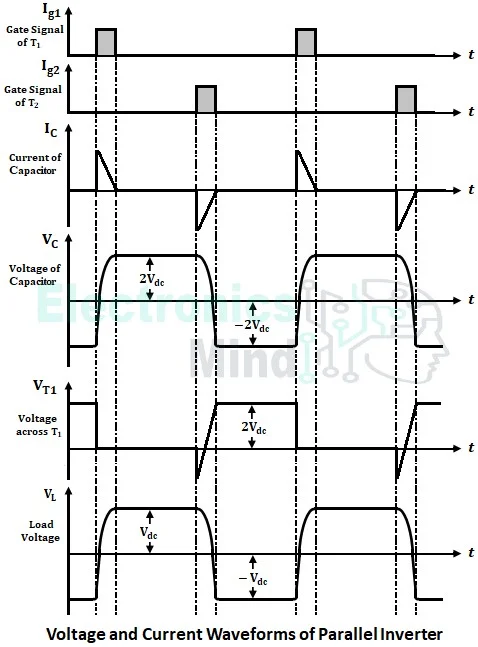

When the triggering pulses are periodically applied to the thyristors alternately, the voltage waveform obtained across the output terminal of the transformer will be approximately rectangular. Hence, the output voltage in a parallel inverter is not a pure sinusoidal wave. The voltage and current waveforms for the parallel inverter circuit are shown below.

Parallel Inverter

Parallel Inverter with RL Load :

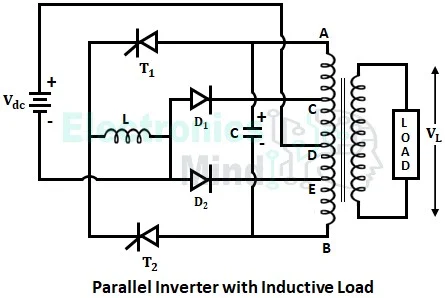

We know that in an inductor, the current lags behind the voltage. Similarly, when a parallel inverter supplies power to an inductive load, the load current lags behind the load voltage. Thus in order to feedback the stored energy by the inductive load back to the source, two diodes are connected in the circuit as shown below.

Parallel Inverter

Advantages of Parallel Inverter :

  • A parallel inverter circuit is very simple, small in size, and less expensive as it employs complementary voltage commutation.
  • By using filter circuits at the output side, a good quality waveform can be obtained.
  • Compare to a series inverter, the commutating components in parallel inverter do not have to carry the entire load current.
  • Compared to the series inverter, parallel inverters have better output voltage.

Disadvantages of Parallel Inverter :

  • A bulky transformer is required to carry load current because, whenever the circuit is operated at low frequencies, the transformer core gets saturated which is an undesirable result.
  • Extra feedback diodes are required for the commutating capacitor. These diodes are used to remove a large amount of energy trapped by the commutating capacitor.
  • This type of inverter is not suitable for fluctuating loads.
  • The inverter performance is adversely affected while carrying large powers.

Applications of Parallel Inverter :

The applications of a parallel inverter are limited to frequencies of a few kHz because of the intrinsic properties of devices used in the parallel inverters. Even though it has some of the applications which are listed below.

  • It is used for high current, low voltage applications.
  • It is used in an uninterruptable power supply (UPS).
  • It is used for the production of a square waveform from a dc source.
